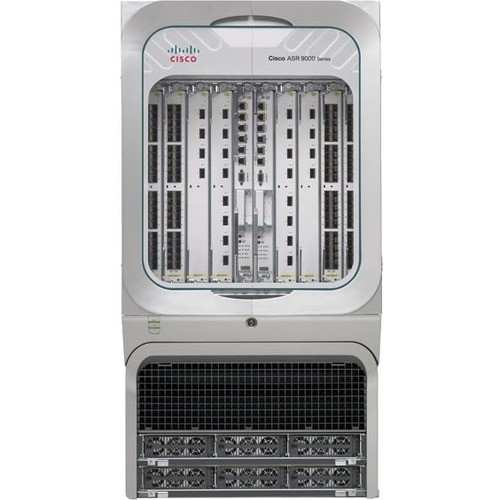

Cisco (ASR-9010-AC-V2) ASR 9010 AC Chassis with PEM Version 2

Cisco Systems, Inc

ASR-9010-AC-V2

http://www.cisco.com/c/en_au

Cisco

ASR 9000

ASR 9010

ASR 9010 AC Chassis with PEM Version 2

The Cisco ASR 9000 Series is an operationally simple, future-optimized platform using next-generation hardware and software. The following are highlights of this next-generation platform.

• The Cisco ASR 9000 System brings increased power and simplicity to the edge, and the ASR 9000v sets the industry benchmark as a virtualized compact carrier-class converged access and aggregation platform. Leveraging Cisco's "network virtualization" or nV Technology, the Cisco ASR 9000 System offers exceptional pay as you grow scale, carrier-class reliability, and simplified service provisioning.

• Cisco IOS XR modular operating system: The Cisco ASR 9000 Series uses the Cisco IOS XR operating system, made famous by the highly successful Cisco CRS Carrier Routing System platform in core deployments. Cisco IOS XR operating system is purpose-built for distributed systems such as the Cisco ASR 9000 Series and uses a microkernel architecture to achieve true modularity. This modularity provides the path to nonstop operations during software image upgrades or module changes, without affecting normal platform operations.

Router Chassis

10

• Line Card
• Route Switch Processor

• Bridge-Protocol-Data-Unit Filtering
• Layer 2 Control Protocol Filtering
• Routing Authentications
• Access Control List
• IP Source Guard
• MAC Limiting
• Secure Shell
• TACACS+
• AAA

• 120 V AC
• 230 V AC

Power Supply

Rack-mountable

933.5 mm

444.5 mm

798.8 mm

86.64 kg

EMC Standards Emission:

• FCC Class 47CFR15 A
• ICES 003 Class A
• AS/NZS CISRP22 Class A
• CISPR 22 (EN55022) Class A
• VCCI Class A
• BSMI Class A
• IEC/EN 61000-3-12: Power Line Harmonics
• IEC/EN 61000-3-11: Voltage Fluctuations and Flicker
• EN55022: Information Technology Equipment (Emissions)
• EN 50121-4: Railway EMC

EMC Standards Immunity:

• IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
• IEC/EN-61000-4-3: Radiated Immunity (10V/m)
• IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
• IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
• IEC/EN-61000-4-5: Signal Surge Ports (1kV)
• IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)
• IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
• IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
• IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
• EN55024: Information Technology Equipment (Immunity)
• EN50082-1/EN-61000-6-1: Generic Immunity Standard
• EN 50121-4: Railway EMC

Safety:

• UL/CSA/IEC/EN 60950-1
• IEC/EN 60825 Laser Safety
• ACA TS001
• AS/NZS 60950
• FDA Code of Federal Regulations Laser Safety
• OSHA Acoustic Requirements

1 Year
