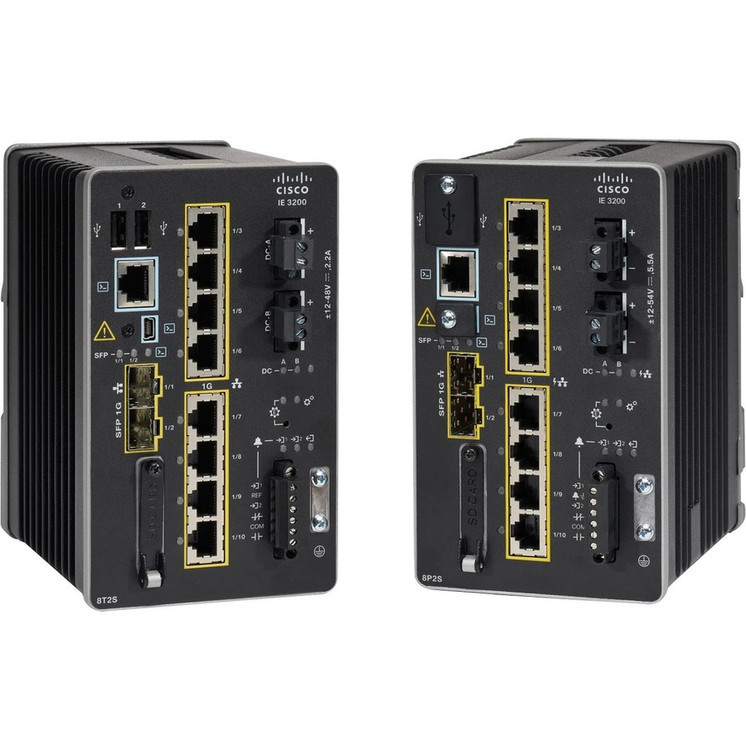

Cisco (IE-3200-8P2S-E-RF) Catalyst IE-3200-8P2S Rugged Switch

Cisco Systems, Inc

IE-3200-8P2S-E-RF

http://www.cisco.com/c/en_au

Cisco

Catalyst

IE3200

IE-3200-8P2S

Catalyst IE-3200-8P2S Rugged Switch

The Cisco Catalyst IE3200 Rugged Series delivers high-speed Gigabit Ethernet connectivity in a compact form factor and is designed for a wide range of industrial applications where hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3200 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.

These switches run Cisco IOS^® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and a Cisco^® Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.

The Cisco Catalyst IE3200 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Industrial Network Director, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool called WebUI.

The IE3200 Series provides an option for up to eight ports of Power over Ethernet Plus (PoE+), with a product SKU that is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.

Remanufactured

Ethernet Switch

8

Yes

• 8 x Gigabit Ethernet Network
• 2 x Gigabit Ethernet Expansion Slot

• Twisted Pair
• Optical Fiber

Gigabit Ethernet

• 10/100/1000Base-T
• 1000Base-X

2.0

SFP (mini-GBIC)

No

2

3

• IEEE 802.3
• IEEE 802.1D
• IEEE 802.3ad
• IEEE 802.1p
• IEEE 802.3ah
• IEEE 802.1Q
• IEEE 802.3x
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.3u
• IEEE 802.1x
• IEEE 802.3ab
• IEEE 802.1ab
• IEEE 802.3z
• IEEE 802.3af
• IEEE 802.3at

Yes

240 W

• 60 V DC
• 48 V DC
• 54 V DC

Power Supply

Yes

32 W

Black

Black

DIN Rail Mountable

152.4 mm

91.4 mm

134.6 mm

1.70 kg
