Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | NCS-55A1-24Q6-SYS |
Manufacturer Website Address | |
Brand Name | Cisco |
Product Series | 5500 |
Product Model | NCS55A1 |

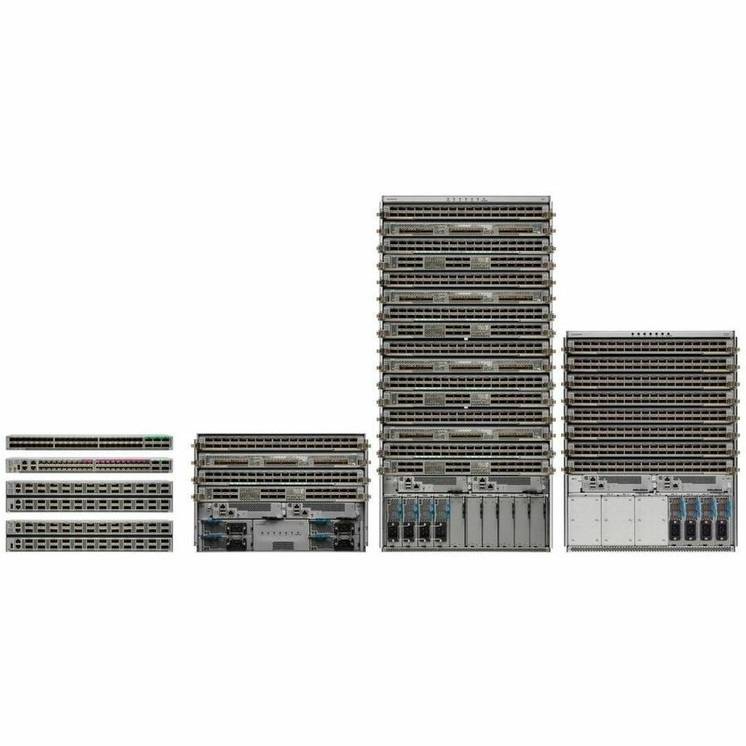

Product Name | NCS55A1 Router Chassis |
Marketing Information | Building on the success of the Cisco® Network Convergence System 5501 (NCS-5501), the Cisco Network Convergence System 55A1-24Q6H-S (NCS-55A1-24Q6H-S) and 55A1-24Q6H-SS (NCS-55A1-24Q6H-SS) offer improvements designed to meet the challenges of the zettabyte era. The NCS-55A1-24Q6H-S and NCS55A1-24Q6H-SS provide dense 1G/10G/25G/40G/100G functionality in a 1-rack-unit package with line-rate MACsec at 10G/25G/40G/100G speeds and Precision Time Protocol (PTP) Synchronous Ethernet (SyncE)/1588 Class B timing. With ultralow per-bit power consumption, deep packet buffering, and optimized forwarding architecture, the NCS-55A1-24Q6H-S and NCS-55A1-24Q6H-SS have the flexibility to be deployed across various network roles, including 5G Mobile Backhaul, Top of Rack (ToR), spine-and-leaf, and Converged Interconnect Network (CIN). Built to take full advantage of the advanced capabilities you have come to expect from Cisco IOS® XR, the NCS-55A1 fixed-chassis models boast advanced packet classification, segment routing, ultrawide Equal-Cost Multipathing (ECMP), programmable network management, and telemetry to make your network smarter, faster, and more agile. |
Product Type | Router Chassis |
Management Port | Yes |
Total Number of Expansion Slots | 54 |
Expansion Slot Type |
|
Ethernet Technology | 100 Gigabit Ethernet |
Network Technology |
|
Networking Standards |
|
Standard Memory | 32 GB |
Redundant Power Supply Supported | Yes |
Power Source | Power Supply |
Compatible Rack Unit | 1U |
Form Factor | Rack-mountable |
Height | 43.9 mm |
Width | 442 mm |
Depth | 551.2 mm |
