Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | C9350-24HX |
Manufacturer Website Address | |
Brand Name | Cisco |
Product Series | C9350 |
Product Model | C9350-24HX |

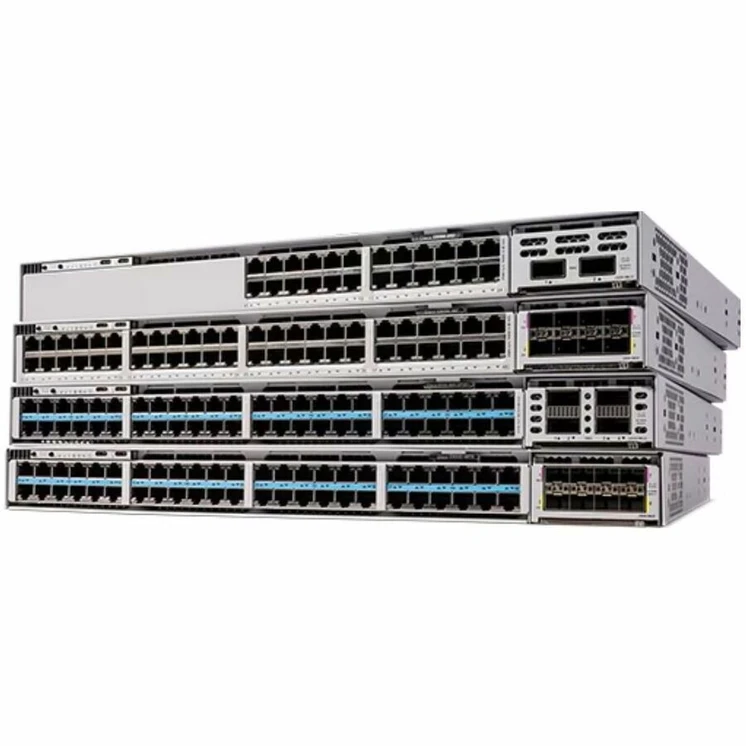

Product Name | C9350-24HX Ethernet Switch |
Marketing Information | Cisco C9350 Series Smart Switches deliver high-performance access switching with built-in security and flexible management for enterprise networks. Powered by Cisco Silicon One ASICs, the C9350 Series provides up to 10-Gbps Multigigabit Ethernet and 90W Power over Ethernet (PoE) per port. They integrate switching and routing in a single platform and enforce zerotrust security across users, devices, and workloads. The platforms support Post-Quantum Cryptography (PQC) algorithms and encryption to protect data against emerging quantum threats, and they are hardware-ready for inline threat protection against zero-day attacks on software vulnerabilities using Cisco Live Protect. The C9350 Series simplifies operations by unifying hardware, software, and support into one system, with consistent management across deployment environments, regardless of how you choose to manage your network.
Series highlights Cisco C9350 Series Smart Switches are stackable, fixed access switches for campus networks. They provide secure connectivity, scale to support high-density environments, and offer flexible deployment options. The platforms connect and power devices, measure network performance, and enable centralized management from the access layer to the core. Key features and benefits | Unified experience A single system and a unified experience for hardware, software, licensing, and support. Managed consistently across cloud, on premises, and hybrid environments. Performance and scalability Up to 1.6 Tbps stacking bandwidth. Up to 48 ports delivering 90W PoE simultaneously. Fast PoE and Perpetual PoE maintain power during reboots. Uplinks support 100G, 50G, 40G, 25G, 10G, and 1G speeds. Redundant Titanium- or Platinum-rated power supplies increase availability. Advanced security and cryptography High-scale hardware Access Control Lists (ACLs) enforce policy at line rate. Segment the network using VXLAN and Cisco Trust Sec. Encrypt traffic with MACsec,at line rate and IPsec up to 100G,using AESGCM-256 encryption. Detect and block threats in line, including zeroday vulnerabilities, with Cisco Live Protect .Support PQC algorithms to prepare for quantum-enabled attacks. Application and endpoint visibility Capture flow data with hardware Flexible NetFlow (FNF). Identify applications with Network-Based Application Recognition (NBAR)1. Integrate with eXtended Detection and Response (XDR)1. Mirror traffic using Switched Port Analyzer Network (SPAN) and Encapsulated Remote SPAN (ERSPAN). Track devices with IP Device Tracking (IPDT) and switch-integrated security features to maintain accurate endpoint visibility. |
Product Type | Ethernet Switch |
Features |
|
High Availability Supported | Yes |
Total Number of Network Ports | 24 |
Uplink Port | Yes |
Stack Port | Yes |
Network (RJ-45) | Yes |
Port/Expansion Slot Details | 24 x 10 Gigabit Ethernet UPoE+ Network Port |
Media Type Supported | Twisted Pair |
Ethernet Technology |
|
Maximum Data Transfer Rate | 1.25 GB/s |
Switching Capacity | 310 GB/s |
Layer Supported | 2 |
Networking Standards | IEEE 802.3bt |
Manageable | Yes |
MTBF | 277660 Hour |
PoE (RJ-45) Port | Yes |
PoE Budget | 2.16 kW |
Input Voltage |
|
Power Source |
|
Redundant Power Supply Supported | Yes |
Number of Power Supplies Supported | 3 |
Number of Power Supplies Installed | 1 |
Height | 43.9 mm |
Width | 444.5 mm |
Depth | 383.5 mm |
Weight (Approximate) | 8 kg |
Application/Usage |
|
