Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | EHWIC-VA-DSL-M= |
Manufacturer Website Address | |
Brand Name | Cisco |

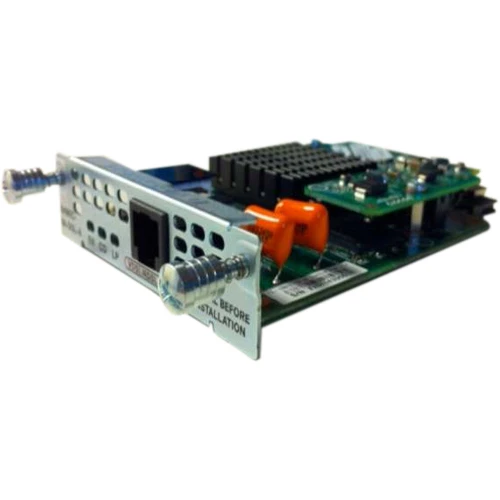

Product Model | EHWIC-VA-DSL-M |
Product Name | WAN Module |
Marketing Information | Cisco Integrated Services Routers Generation 2 (ISR G2) offer a wide variety of WAN connectivity modules to accommodate the range of application needs in customer networks. The Cisco Multimode VDSL2 and ADSL2/ADSL2+ Enhanced High-Speed WAN Interface Cards (VDSL2 and ADSL2+ EHWICs) support DSL multimode, including very-high-speed VDSL2 and asymmetric ADSL2/ADSL2+. VDSL2 and ADSL2/ADSL2+ are supported on a single WAN interface, thus providing secure, cost-effective connectivity from small businesses to enterprise branch offices. This 1-port enhanced high-speed WAN interface card (EHWIC) supports multimode DSL (VDSL2 and ADSL2 /ADSL2+) over Plain Old Telephone System (POTS) and ISDN. |
Product Type | WAN Module |
Application/Usage |
|
Total Number of Ports | 1 |
Connector Type | RJ-11 |
Interfaces/Ports Details | 1 x RJ-11 VDSL WAN |
Maximum Data Transfer Rate | 100 |
Height | 19.5 mm |
Width | 78.2 mm |
Depth | 111.5 mm |
Weight (Approximate) | 90.7 g |
Compatibility | Cisco ISR G2 routers:
|
Limited Warranty | 90 Day |
