Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | UCSC-C220-M8S |
Manufacturer Website Address | |
Brand Name | Cisco |
Product Series | C220 M8 |

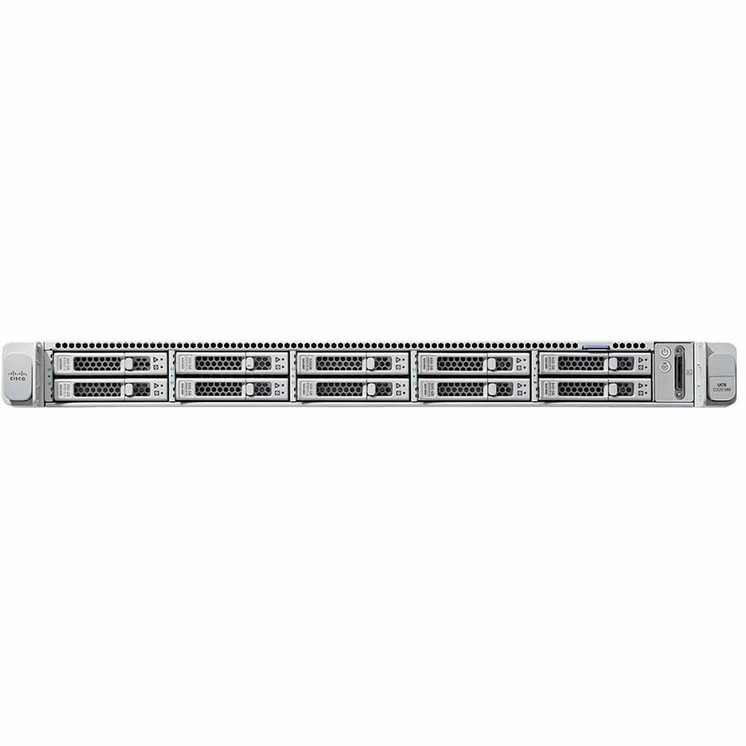

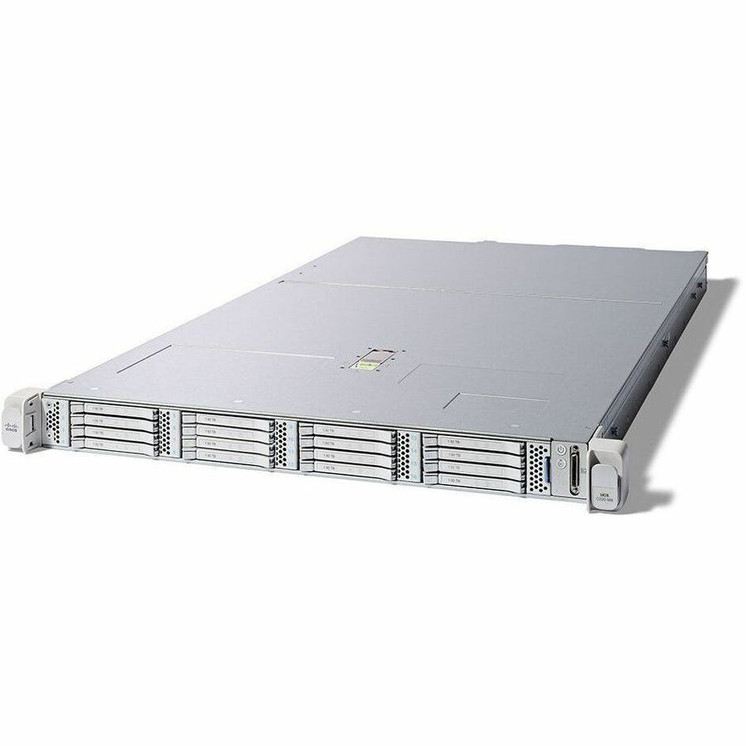

Product Name | UCS C220 M8 Barebone System |
Marketing Information | The Cisco UCS C220 M8 SFF Rack Server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the Intel® Xeon® 6 Scalable Processors, 16 DIMM slots per CPU for DDR5-6400 Memory DIMMs with DIMM capacity points up to 128GB. The Cisco UCS C220 M8 SFF Rack Server harnesses the power of the latest Intel® Xeon® Scalable Processors and offers the following: CPU:
Memory:
The server provides an internal slot for one of the following:
mLOM: The UCS C220 M8 SFF Rack Server has a single integrated 1GBE management port. A modular LAN on motherboard (mLOM)/OCP 3.0 slot provides various connectivity options from 10GbE to 200GbE. |
Product Type | Barebone System |
Number of Processors Supported | 2 |
Processor Supported |
|
64-bit Processing | Yes |
Chipset Manufacturer | Intel |
Maximum Memory Supported | 4 TB |
Memory Technology | DDR5 SDRAM |
Memory Standard | DDR5-6400/PC5-51200 |
Total Number of Memory Slots | 32 |
Supported Storage Drive Interfaces |
|
Supported Storage Drive Types | SSD |
Controller Type |
|
RAID Supported | Yes |
Graphics Controller Manufacturer | Matrox |
Graphics Memory Capacity | 8 MB |
Ethernet Technology | Gigabit Ethernet |
Number of Total Expansion Bays | 10 |
Number of 2.5" Bays | 10 |
Total Number of Expansion Slots | 3 |
Number of PCI Express x16 Slots | 3 |
Total Number of USB Ports | 2 |
Number of USB 3.0 Ports | 2 |
Network (RJ-45) | Yes |
Number of VGA Ports | 1 |
Operating System Supported |
|
Input Voltage |
|
Frequency |
|
Form Factor | Rack-mountable |
Rack Height | 1U |
Height | 43.2 mm |
Width | 429.3 mm |
Depth | 762 mm |
Weight (Approximate) | 23.60 kg |
