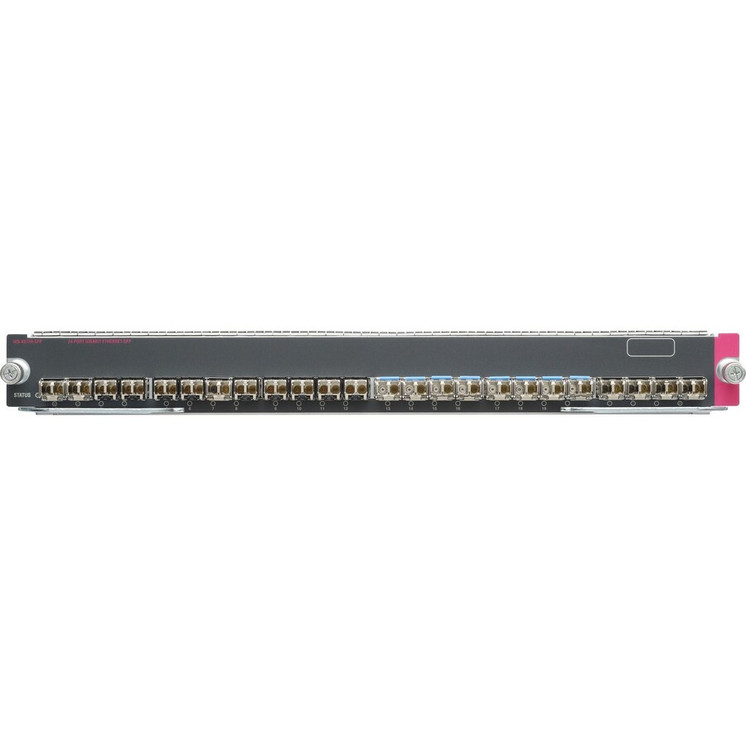

Cisco (WS-X6724-SFP=) Catalyst 24-port Gigabit Ethernet Switching Module

Cisco Systems, Inc

WS-X6724-SFP=

http://www.cisco.com/c/en_au

Cisco

WS-X6724-SFP=

Catalyst 24-port Gigabit Ethernet Switching Module

The 24-port Gigabit Ethernet switching module (WS-X6724-SFP) provides 24 switched, Gigabit Ethernet ports. The 24 ports support hot-swappable Small Form-Factor Pluggable (SFP) 1000BASE-SX, 1000BASE-LX/LH, and 1000BASE-ZX optical transceivers.

Switching Module

Switching Network

24

SFP (mini-GBIC)

30.5 mm

365.8 mm

406.4 mm

• Primary Applications: High Performance distribution, core layer and data center
• Interface Module Class:CEF720
• Queues per Port (Tx = Transmit, Rx = Receive): Tx-1p3q8T,Rx-1q8T, (2q8T when using dCEF)
• Scheduler:Weighted Round Robin
• Buffer Size per port: Rx-166KB,Tx-1.17MB
• WS-X6724-SFP supports single 20-Gbps channel connection (20Gbps total) to switch fabric on Supervisor Engine 720; all other 67xx interface modules feature dual 20-Gbps channel connection to the switch fabric

• Cisco Catalyst 6506
• Cisco Catalyst 6509
• Cisco Catalyst 6509-NEB-A
• Cisco Catalyst 6513
